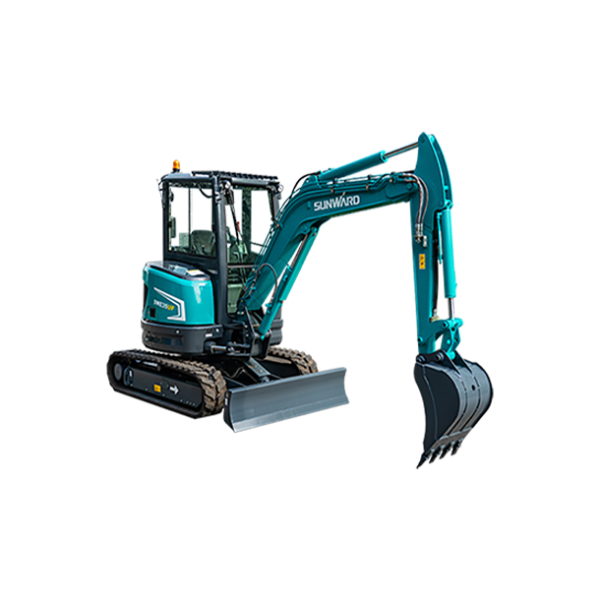

SWE35UF mini excavator


Наличие: В наличии
SKU
Մինի էքսկավատոր, այգին փորելու համար

Requesting a price quote for item:



This field is required

Добавить в список желаний Добавить в сравнение
Sunward has been developing hydraulic crawler excavator since 1999, and is known as "the national brand leader in Chinese excavator industry". Sunward's excavator products cover a full range (mini, compact, medium and large) from 0.8t to 90t. Excavators of Sunward feature attractive appearance, excellent performance, user-friendly operation, easy maintenance and internationally advanced performance indicators, and are exported to more than 60 countries and regions, including Europe and USA. Sunward is ranked the top 20 excavator manufacturers around the world.
Product Description
SWE35UF Technical Parameters
Type of cab cabin/canopy
Bucket capacity,std.  m3 0.11
Bucket width mm 520
Machine weight   kg 3850/3750
Dimensions Overall length mm 4890
Overall height mm 2545
Overall width mm 1700
Ground clearance mm 720
Engine Brend KUBOTA
Model D1703-E4B-SWD-1
Displacement L 1.647
Output kW/rpm 18.5/2200
Working ranges  Max cutting height mm 4925
Max loading height mm 3400
Max digging depth mm 3120
Max vertical wall digging depth mm 5260
Max digging reach mm 5390
Boom swing angle(ieft/right) o 72/44
Front swing radius mm 2263
Tail swing radius mm 850
Max digging force( Arm) kN 22.53
Max digging force( Bucket) kN 31.8
Track Type Rubber crawler
Track Width mm 300
Undercarrige Track Length mm 2163
Length to center of Rollers mm 1670
Lenhth to center of track mm 1400
Travelling speed( High/Low) km/h 4.2/2.3
Gradeability deg 30
Swing speed gpm 9
Ground pressure kpa 32.3
Dozer size Width mm 1700
Height mm 366
Lifting capacity(Height/Depth) mm 337/376
Hydraulic pumps Type   1 variable plunger pump
Displacement L/min 1*40
Hydraulic pressure Mpa 24.5
Fuel tank capacity L 40
Hydraulic oil tank capacity L 41
Load Capacity
Lift Point Height Lift Point Radius(MAX) Lift Point Radius(4.0m) Lift Point Radius(3.5m) Lift Point Radius(3.0m) Lift Point Radius(2.5m)
Over-front(kg) Over-side(kg) Over-front(kg) Over-side(kg) Over-front(kg) Over-side(kg) Over-front(kg) Over-side(kg) Over-front(kg) Over-side(kg)
3.0m 687.3* 382.5       -
2.0 774.3* 292.5 817.8* 382.5 878.7* 472.5 1017.9* 645.0 1226.7* 847.51.0
1.0 809.1* 262.5 957* 337.5 1078.8* 427.5 1357.2* 555.0 1853.1* 757.5
