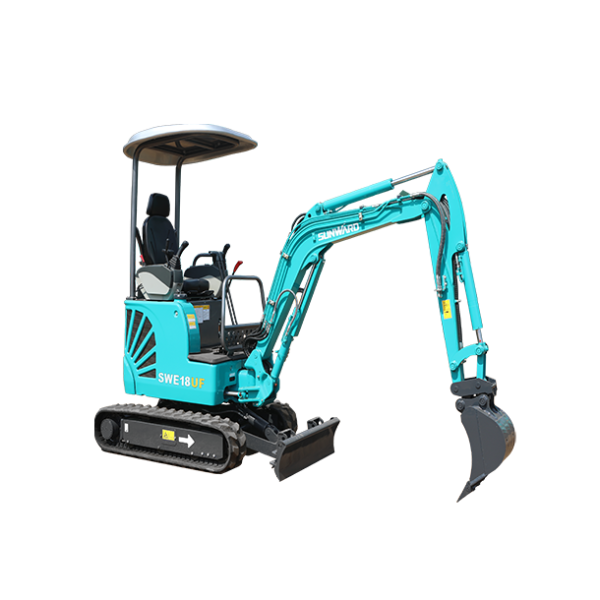

SWE18UF mini excavator


Наличие: В наличии
SKU
SWE18UF

Requesting a price quote for item:



This field is required

Добавить в список желаний Добавить в сравнение
Sunward has been developing hydraulic crawler excavator since 1999, and is known as "the national brand leader in Chinese excavator industry". Sunward's excavator products cover a full range (mini, compact, medium and large) from 0.8t to 90t. Excavators of Sunward feature attractive appearance, excellent performance, user-friendly operation, easy maintenance and internationally advanced performance indicators, and are exported to more than 60 countries and regions, including Europe and USA. Sunward is ranked the top 20 excavator manufacturers around the world.
  SWE18UF Technical Parameters
Type of cab canopy
Bucket capacity,std.
Bucket width
Machine weight		 m³ 0.04
mm 380
kg 1880
Dimensions Overall length mm 3582
Overall height mm 2415
Overall width mm 660
Ground clearance mm 160
Engine Brand Yanmar
Model 3TNV80F-SSSU
Displacement L 1.267
Output kW/rpm 13.4/2200
Working ranges Max cutting height mm 3458
Max loading height mm 2431
Max digging depth mm 2206
Max vertical wall digging depth mm 1590
Max digging reach mm 3942
Boom swing angle(left/right) ° 71/49
Front swing radius mm 1794
Tail swing radius mm 680
Max digging force(Arm) kN 11.24
Max digging force(Bucket) kN 22.7
Track Type mm Rubber crawler
Track Width mm 230
Track Length mm 1538
Undercarrige Length to center of Rollers mm 1210
Lenhth to center of track mm 760/1090
Travelling speed(High/Low) km/h 3.5/2
Gradeability ° 30
Swing speed rpm 10
Dozer size Width mm 990/1320
Height mm 267
Lifting capacity(Height/Depth) mm 216/270
Hydraulic pumps 2 variable plunger pumps (21L/min)
+ 1 gear pump (15L/min)
+ 1 pilot gear pump (5.9L/min)
Fuel tank capacity L 24.6
Hydraulic oil tank capacity L 18.6
Lift Point Height Lift Point Radius(MAX) Lift Point Radius(3.0m) Lift Point Radius(2.0m)
Over-front(kg) Over-side(kg) Over-front(kg) Over-side(kg) Over-front(kg) Over-side(kg)
2.5m 220.10* 224.90* 205.80* 215.40* - -
2.0m 220.10* 224.90* 220.10* 224.90* - -
1.0m 229.70* 234.50* 244.10* 248.90* 368.50* 406.80*
0m 258.40* 258. 268.00* 277.60* 449.90* 469.00*
―1.0m 253.60* 253.60* - - 368.50* 358.90*
